How to Improve Carbon Molecular Sieve Regeneration Efficiency in PSA Nitrogen Generators？

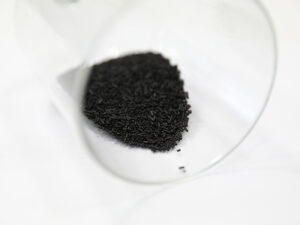

As a professional manufacturer of PSA nitrogen generators, we understand that carbon molecular sieve (CMS) regeneration efficiency directly determines nitrogen purity, system energy consumption, and CMS service life.
In a Pressure Swing Adsorption (PSA) nitrogen generation system, the regeneration process restores the adsorption capacity of CMS by removing oxygen, carbon dioxide, and other impurities from its micropores. Optimizing this process is critical for achieving 99.9%–99.999% nitrogen purity, lowering operating costs, and extending equipment lifespan.
In this guide, we explain how to improve CMS regeneration efficiency based on engineering principles and field experience.
1. Optimize Regeneration Pressure in PSA Nitrogen Systems
PSA technology operates on the principle of:
High-pressure adsorption + Low-pressure regeneration
Lower regeneration pressure increases the desorption driving force, allowing oxygen molecules to escape more easily from CMS micropores.
However, regeneration pressure should not be excessively low because:
It increases vacuum pump energy consumption
It slows pressure recovery in the next adsorption cycle
It may reduce overall nitrogen production capacity
Recommended Regeneration Pressure:
0.03–0.06 MPa (gauge pressure)
Manufacturers should:
Adjust vacuum pump power
Fine-tune exhaust valve opening
Monitor real-time pressure data
The goal is to balance complete desorption and energy efficiency.
2. Improve Purge Gas Purity and Flow Control
Purge gas is essential for effective CMS regeneration. Most PSA nitrogen generators use a portion of produced nitrogen as purge gas.
(1) Purge Gas Purity
The purge gas purity must be equal to or higher than the product nitrogen purity (typically ≥99.9%).
If oxygen content in purge gas is high:
It re-adsorbs into CMS
Reduces regeneration effectiveness
Decreases nitrogen purity
Ensure:
Strict isolation between product nitrogen and purge lines
No cross-contamination in piping
(2) Purge Flow Rate & Time Control
Excessive purge flow:
Wastes nitrogen
Increases energy cost
Insufficient purge flow:
Causes incomplete desorption
Reduces CMS working capacity
Recommended purge flow:
10%–20% of nitrogen production rate
Best practice:
Install an oxygen analyzer at the regeneration outlet. Stop purge when oxygen concentration approaches ambient air level (~21%).
This dynamic control significantly improves regeneration efficiency.
3. Control Regeneration Temperature Properly
Temperature affects molecular motion and desorption speed.
Higher temperature:
Accelerates impurity release
Improves regeneration efficiency
However, CMS temperature tolerance is usually ≤60°C. Long-term overheating accelerates aging and reduces service life.
Recommended Strategies:
Ambient temperature purge: Suitable for standard purity nitrogen systems.
Heated purge (40–50°C): Recommended for high purity nitrogen (99.999%).
Important:
Ensure uniform heating
Avoid localized overheating
Protect CMS microporous structure
4. Optimize Adsorption–Regeneration Cycle Time
Cycle time directly influences CMS performance.
If cycle is too long:
CMS becomes deeply saturated
Regeneration becomes difficult
If cycle is too short:
Regeneration is incomplete
Valve switching frequency increases
Energy consumption rises
Typical PSA Cycle Times:
Small nitrogen generators: 60–120 seconds
Large industrial systems: 180–300 seconds
Use Pressure Equalization Step
Adding a pressure equalization step between adsorption and regeneration beds:
Recovers partial pressure energy
Pre-purges regeneration bed
Shortens regeneration time
Reduces energy consumption
This is a highly recommended design improvement for industrial PSA nitrogen generators.
5. Prevent Carbon Molecular Sieve Contamination
CMS contamination is one of the primary causes of regeneration efficiency decline.
Common contaminants:
Oil vapor
Moisture
Dust particles
(1) Compressed Air Pre-treatment Requirements
To protect CMS:
Residual oil ≤ 0.01 mg/m³
Dew point ≤ -40°C
Filtration precision ≤ 0.1 μm
Install:
High-efficiency oil remover
Refrigerated or desiccant air dryer
Precision air filters
Proper air pre-treatment directly extends CMS service life from 5–8 years to 8–10 years.
(2) Regular Maintenance
Inspect air treatment system every 3–6 months
Replace filter elements regularly
Monitor bed pressure drop
If pressure drop suddenly increases, CMS pulverization may occur and requires inspection or replacement.
(3) Avoid System Overload
Do not exceed the rated air processing capacity. Overloading causes premature saturation and impurity breakthrough.
6. Ensure System Sealing and Uniform Gas Distribution
(1) Valve Sealing Performance
During regeneration, valve leakage increases bed pressure and reduces desorption efficiency.
Maintenance requirements:
Replace aging seals
Keep leakage rate ≤ 0.1%
Regularly inspect exhaust and equalization valves
(2) Uniform Gas Distribution
Improper CMS filling causes channeling, leading to incomplete regeneration.
Best practices:
Uniform and compact CMS loading
Install gas distribution plates
Avoid layering or void spaces
Uniform airflow ensures full bed regeneration.
Final Thoughts: A Systematic Approach to Improving CMS Regeneration Efficiency
Improving carbon molecular sieve regeneration efficiency is not a single-parameter adjustment—it is a comprehensive system optimization process.
By optimizing:
Regeneration pressure
Purge gas purity and flow
Temperature control
Cycle time design
Air pre-treatment quality
System sealing and airflow distribution
Manufacturers and users can achieve:
Nitrogen purity up to 99.999%
Lower energy consumption
Extended CMS lifespan
Reduced operating costs
Improved ROI for industrial nitrogen generation systems
As an experienced PSA nitrogen generator manufacturer, we recommend data-driven parameter tuning combined with proper system design to achieve the best regeneration performance.
If you are looking for high-efficiency PSA nitrogen generators or customized CMS optimization solutions, feel free to contact us for technical support. sales@aimrise.com
