What are the differences in technical characteristics between PSA oxygen generation devices and VPSA oxygen generation devices?
“PSA and VPSA oxygen generation technologies achieve oxygen separation through different pressure cycling mechanisms: PSA uses pressurized adsorption and atmospheric pressure desorption, with a compact structure suitable for small and medium-scale applications; VPSA reduces energy consumption by 20%-40% through vacuum desorption, making it more suitable for large-scale continuous oxygen supply scenarios in steel mills and other industries. The two technologies form complementary technical value.”
In industrial production and in specific industries, stable and efficient oxygen supply is of great importance.变压吸附 (PSA) technology， with its characteristics such as no need for deep cooling and simple operation， has become one of the current oxygen generation methods. The conventional PSA and vacuum PSA oxygen generation machine devices are each unique in their technical paths， meeting the oxygen demands of different scenarios.
PSA oxygen generator
I. Core principle differences of the oxygen generator device： The desorption method is the essential distinction
The core principle of PSA and VPSA oxygen generation “utilizes the selective adsorption differences of the adsorbent (such as molecular sieves) under different pressures” to achieve oxygen separation， but the desorption process (i.e.， the regeneration method of the adsorbent) is different， determining the technical path differences between the two：
(1) PSA oxygen generation： adopts “pressurized adsorption， atmospheric pressure desorption”
Adsorption stage： compressed air is introduced into the adsorption tower under a higher pressure (usually 0.1-0.4 MPa) and molecular sieves preferentially adsorb nitrogen， while oxygen is output as the product gas；
Desorption stage： the adsorption tower is depressurized to atmospheric pressure (0.1 MPa)， and the adsorbed nitrogen naturally desorbs and is discharged along with the tail gas， completing the adsorbent regeneration.
(2) VPSA oxygen generation： adopts “pressurized adsorption， vacuum desorption”
Adsorption stage： compressed air is introduced into the adsorption tower under a lower pressure (usually 0.15-0.3 MPa)， and molecular sieves adsorb nitrogen， while oxygen is output；
Desorption stage： the adsorption tower is evacuated to a negative pressure (usually -0.06 to -0.08 MPa) by a vacuum pump， and nitrogen desorption is enhanced in a vacuum environment， achieving adsorbent regeneration.
VPSA oxygen generator
II. Core components and system complexity differences of the oxygen generator device
1. Compressor
PSA： requires high-pressure screw compressors (export pressure 0.1-0.4 MPa)， with high requirements for the stability of compressed air pressure， and higher equipment costs and operating noise；
VPSA： requires low-pressure high-flow compressors (export pressure 0.15-0.3 MPa)， with a flow demand far higher than PSA (about 2-3 times that of PSA in the same scale)， but lower pressure and lower energy consumption.
2. Options for different pressure environments
PSA： uses high-pressure sodium molecular sieves， with high adsorption capacity for nitrogen under pressurization， requiring precise management of high-pressure sequence switching and temperature compensation (compression heating may affect adsorption efficiency)；

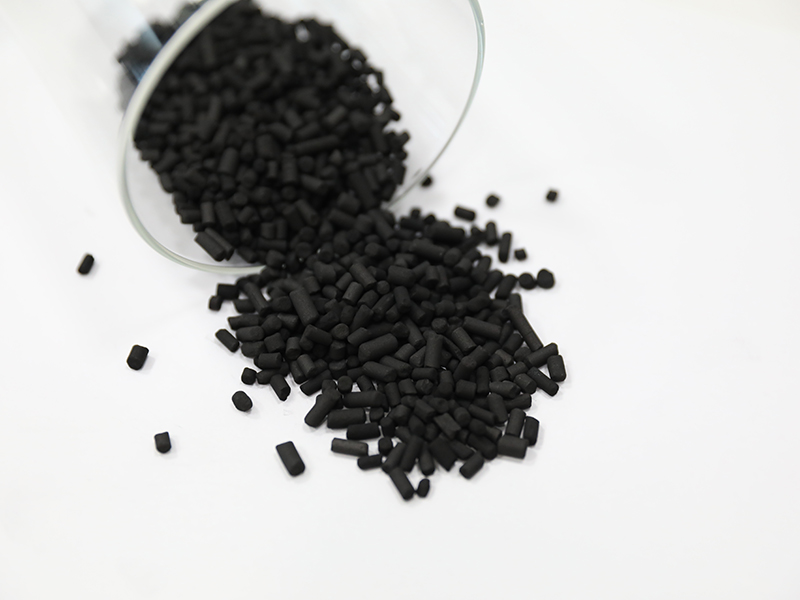

VPSA： selects lithium-based molecular sieves， maintaining excellent adsorption kinetics even under near-atmospheric and vacuum conditions， focusing on the coordinated start-stop of vacuum/low-pressure systems to avoid pressure conflicts that cause airflow disorder.
3. Auxiliary equipment
PSA： does not require a vacuum pump， the system only requires simple auxiliary components such as valves， buffer tanks， etc.， with fewer maintenance points；
VPSA： must be equipped with Roots vacuum pumps or claw-type vacuum pumps (used for vacuum pumping)， increasing equipment costs， maintenance volume (such as vacuum pump oil replacement， filter element cleaning)， and noise sources.
III. Performance and scene adaptability of the oxygen generator device .
The structure of PSA is compact, and the energy consumption during the high-pressure compression process is high. However, it is flexible in starting and stopping (it can reach the standard within 30 minutes), especially in small-scale, intermittent oxygen usage scenarios and small factory sites.
The VPSA single-unit production capacity is high. Thanks to the efficiency of negative pressure desorption, energy consumption is reduced by 20% to 40%, the utilization rate of the adsorbent is higher, and the service life is longer. Although it takes a relatively long time to start and stop (1-2 hours), its characteristics are particularly prominent when operating in a large-scale continuous manner, making it more suitable for centralized oxygen supply scenarios in steel mills, chemical plants, etc. .
In summary, the technologies of PSA and VPSA oxygen generation devices start from the “pressure circulation mechanism”, and form a series of differences in terms of process, equipment, performance, and application scenarios. Eventually, this leads to their complementary technical value when meeting different oxygen demand requirements.
